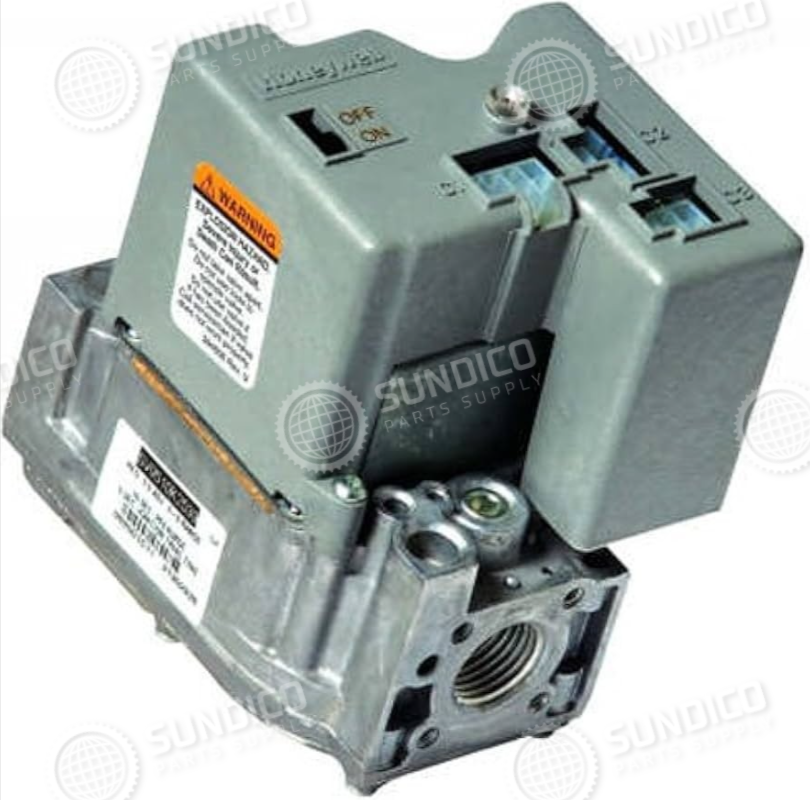

Resideo SV9520H8513 SmartValve HVAC Gas Control Ignition Module

A high-performance integrated gas control and ignition system that improves furnace reliability, safety, and heating efficiency.

The Resideo SV9520H8513 SmartValve is designed to replace failing or outdated furnace control systems that can cause ignition delays, inconsistent heating, or unsafe gas flow operation. By combining gas regulation, hot surface ignition control, and blower coordination into one compact unit, it streamlines furnace operation and improves overall system efficiency. Installation should be performed carefully according to manufacturer wiring diagrams, ensuring correct electrical connections and proper mounting within the approved 0–90° orientation range.

Product Details

• Product Type: HVAC Smart Gas Valve / Ignition Control Module
• Compatibility: Designed for select forced-air gas furnace systems compatible with Resideo and ST9160 fan timer configurations
• Manufacturer: Resideo – Genuine OEM Original Part
• Common Symptoms Fixed: Helps resolve ignition failure, inconsistent heating cycles, system lockouts, and unsafe burner or blower operation caused by faulty control modules.

Part Numbers Replaced

SV9520H8513

Key Features

Genuine OEM Quality: Manufactured by Resideo to meet strict engineering and safety standards, ensuring reliable ignition control and precise gas flow regulation.

Performance Efficiency: Integrates multiple furnace functions—including gas control, ignition sequencing, and blower coordination—into a single smart module for improved system efficiency.

Durability: Built with industrial-grade electronic components designed to withstand high-temperature furnace environments and continuous HVAC operation.

Easy Installation: Features flexible mounting from 0 to 90 degrees, allowing adaptable installation in a wide range of furnace configurations when installed according to service guidelines.

Compatibility: Works with compatible forced-air furnace systems using electronic fan timer integration and Resideo SmartValve control architecture.

Restore safe, stable, and efficient furnace operation with a smart ignition control system built for reliability. Order now to improve heating performance, enhance safety, and ensure consistent comfort throughout the heating season.
